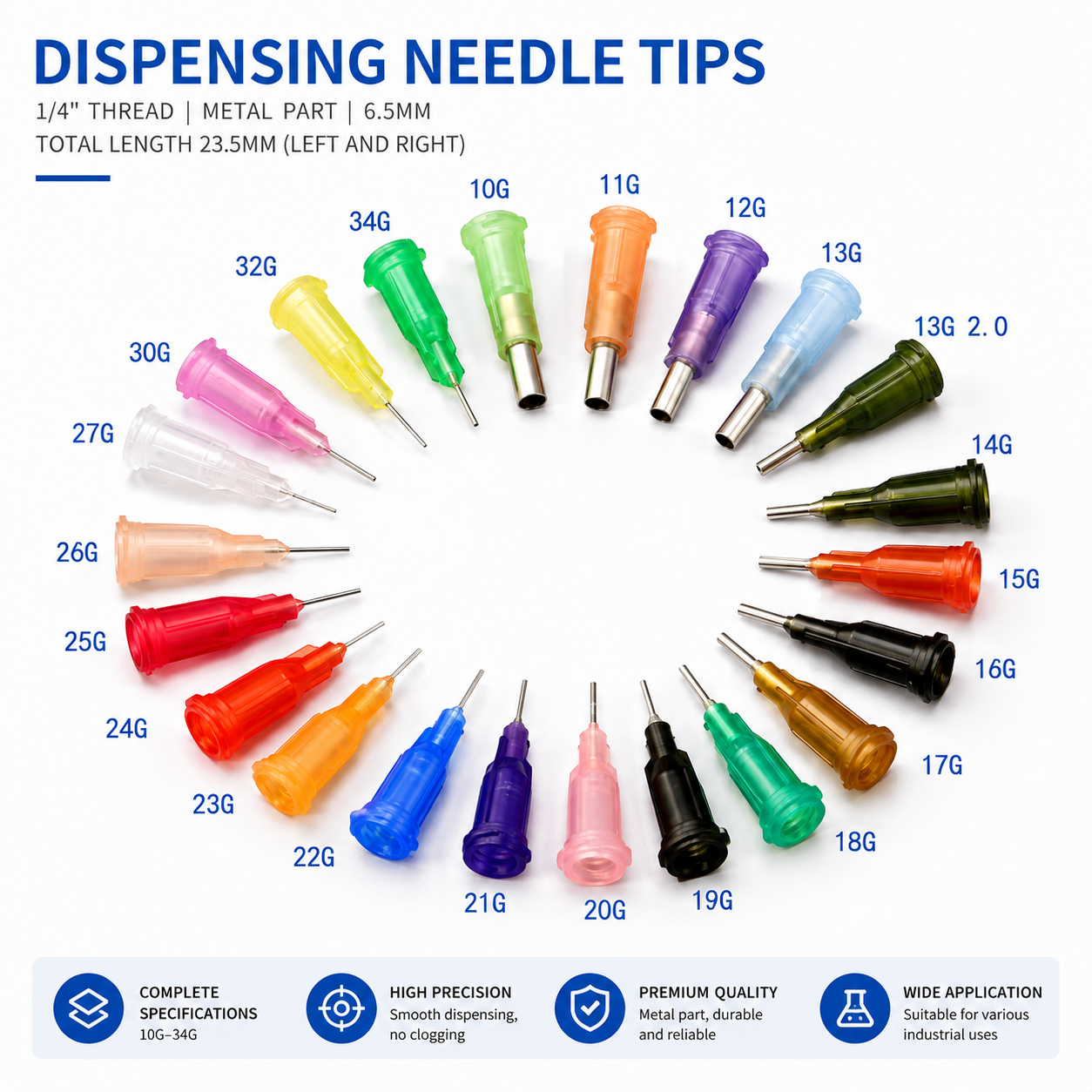

Plastic Hub Stainless Steel Dispensing Needle Tips – 8G to 34G, 30mm Length

High-precision dispensing needle tips featuring a durable plastic threaded hub and stainless steel needle for accurate and consistent fluid dispensing. Available in multiple sizes from 8G to 34G, with color-coded hubs for easy identification. The needle has an approx. 30mm overall length and 12.7mm stainless steel tube length, making it suitable for dispensing machines, syringes, adhesives, solder paste, flux, oils, inks, and other industrial fluids.

Original price was: $5.00.Current price is: $3.00.

Category SMT Peripherals

One-stop shop for all your SMT needs

Plastic Hub Stainless Steel Dispensing Needle Tips – 8G to 34G, 30mm Length

Large inventory | Fast response | Reasonable price

Gauge	Inner Diameter (ID)	Outer Diameter (OD)	Color
8G	3.10 mm	3.50 mm	Green
10G	2.60 mm	3.00 mm	Light Orange
11G	2.37 mm	2.77 mm	Light Purple
12G	2.00 mm	2.40 mm	Sky Blue
13G	1.65 mm	2.10 mm	Olive
14G	1.45 mm	1.85 mm	Olive
15G	1.36 mm	1.80 mm	Amber
16G	1.25 mm	1.60 mm	Gray
17G	1.10 mm	1.49 mm	Brown
18G	0.84 mm	1.27 mm	Green
19G	0.75 mm	1.05 mm	Black
20G	0.60 mm	0.90 mm	Pink
21G	0.51 mm	0.82 mm	Purple
22G	0.41 mm	0.72 mm	Blue
23G	0.34 mm	0.64 mm	Orange
24G	0.31 mm	0.54 mm	Light Red
25G	0.26 mm	0.51 mm	Red
26G	0.24 mm	0.46 mm	Light Gray
27G	0.21 mm	0.41 mm	Transparent
30G	0.16 mm	0.31 mm	Light Pink
32G	0.11 mm	0.25 mm	Yellow
34G	0.06 mm	0.25 mm	Light Cyan
