——Sufficient inventory of reflow soldering machines with multiple specifications

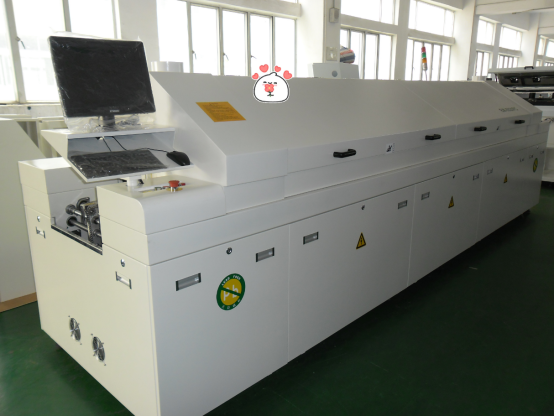

If you are looking for a reflow soldering machine with flexible board width, precise temperature control, and convenient maintenance, the CX-LF8820PC is the best choice tailored for you. This model is in stock all year round and can be shipped within half a month of placing an order, helping you to increase production capacity and stabilize the process in the shortest time.
One machine with multiple functions, the first choice for production line upgrade
• 16 heating zones (8 upper and 8 lower) + 2 forced air cooling zones, 3600 mm effective heating length, easy to handle high-speed patch lines
• Guide rail + 600 mm mesh belt dual channels, fully compatible with 50-500 mm PCB, fixture board can also pass smoothly
• Computer + PLC dual control, ±1-2 ℃ temperature control accuracy, with Shenzhen Si Chuang curve test module, real-time temperature monitoring and temperature adjustment in one step
• Electric motor push rod lifts the inner tank, no air compressor required, silent opening, larger maintenance space
• UPS power failure protection, abnormal power failure can also safely cool down, reducing the risk of scrapping
Core highlights, clear at a glance
| Project | CX-LF8820PC Specifications | Customer benefits |
| Temperature control system | Computer + PLC dual control, ±1–2 ℃ accuracy | Smooth curve, higher yield |
| Heating length | 3600 mm 16 zones | Large capacity, suitable for high-speed patch lines |
| Transmission method | Guide rails + 600 mm mesh belt | Single/double-sided boards and fixture boards can be processed |
| Energy-saving design | Normal operation 12 kW / full load 60 kW | Low consumption and high efficiency, reducing operating costs |
| Easy maintenance | Electric motor push rod lifts the inner tank | No air compressor required, silent start, large maintenance space |
| Power failure protection | UPS uninterruptible power supply | Sudden power outages can also safely cool down and protect PCB |
In addition to data, details are also in place
• Imported Φ145 mm exhaust channel, with a reserved 15-20 m³/min exhaust volume, easily connected to the factory environmental protection system
• 900 mm standard transmission height, compatible with mainstream board loading machines and cache machines, plug-and-play for the entire line
• Net weight 1.5 T steel structure, long-term operation without shaking, ensuring accurate welding of 0201 micro components
List of spot specifications

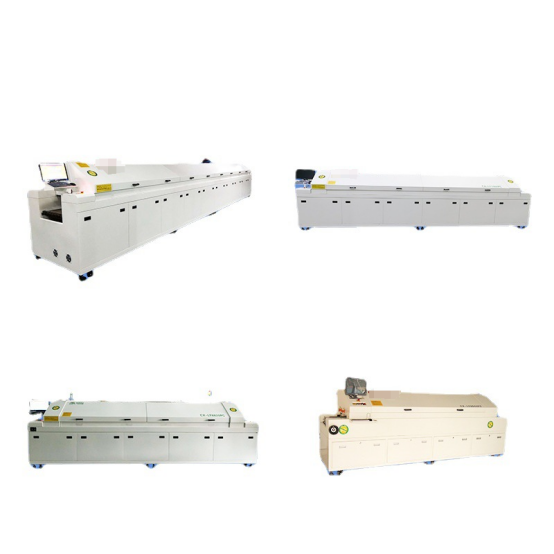

In addition to CX-LF8820PC (8 temperature zones), the inventory also covers:

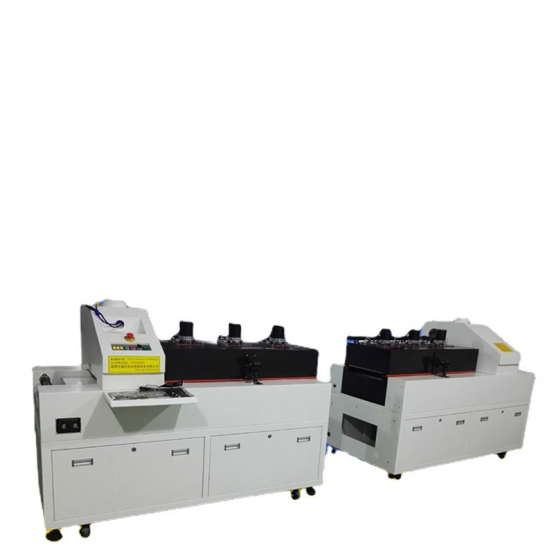

6 temperature zones, 10 temperature zones and split reflow soldering, which can meet different production capacity and different budget requirements. All equipment undergoes aging tests before leaving the factory, and can be put into production as soon as it is powered on.
Fast delivery
• Regular orders are shipped within half a month
• Provide process debugging and operation training
Welcome to call/email for detailed information or make an appointment to see the machine on site!
